07 GASKETS CAMLOCK

CGG-200-T

CGG-200-B

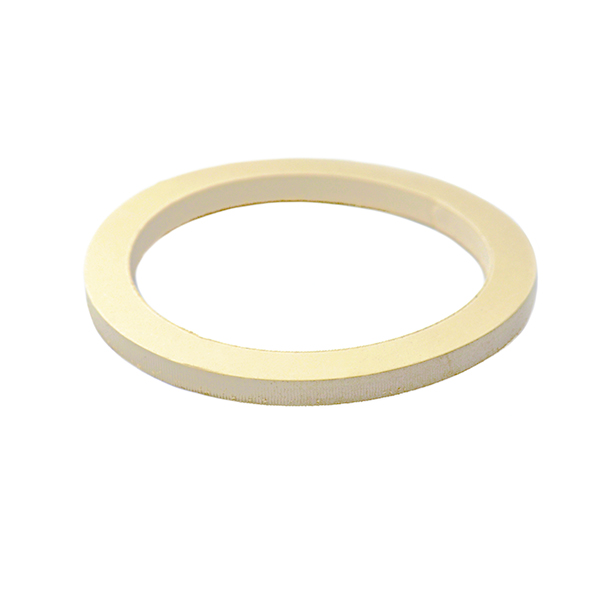

CGG-300-WB

GASKETS CAMLOCK

Gaskets for CAMLOCK fittings are of significant importance in the market industry of tank trailers. These gaskets play a crucial role in ensuring a secure and leak-proof connection between the CAMLOCK fittings and hoses or pipelines. They provide a tight seal, preventing any leakage of fluids or gases during the transportation of materials.

Gaskets for CAMLOCK fittings are designed to withstand high pressures, temperature variations, and corrosive substances commonly encountered in the tank trailer industry. They are made from high-quality materials such as rubber or silicone, which offer excellent resistance to chemicals and environmental factors.

By using reliable and properly fitted gaskets, tank trailer operators can minimize the risk of spills, contamination, and equipment damage, ensuring safe and efficient operations. Gaskets for CAMLOCK fittings are essential components that contribute to the overall integrity and performance of tank trailers in the industry.

Part #	Buna Nitrile	Buna Nitrile Xtra Thick	PTFE Env/ Buna Filler	White Buna	EPDM	Viton	PTFE Encaps Silicone
1/2"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
3/4"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
1"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
1-1/4"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
1-1/2"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
2"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
2-1/2"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
3"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
4"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
5"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS
6"	CGG-050-B	CGG-050-BX	CGG-050-T	CGG-050-WB	CGG-050-E	CGG-050-V	CGG-050-TS

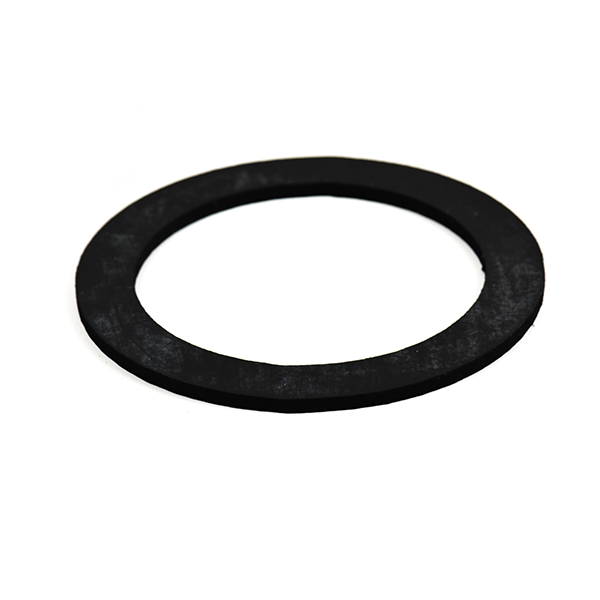

Buna N:

(Color Code Blue Stripe) Buna N is standard. It is generally recommended for petroleum derivatives, neutral or slightly acidic salt solutions, alcohols, ethers, glycols, fats, oils, and greases. This compound should give good service from -40°F to +250°F.

Buna N-FDA:

*Viton A:

Color Code Yellow Stripe) Recommended for aromatics, hydrocarbons, liquid chlorine, carbon disulfide and molten sulfur. Viton A is not recommended for esters or the ketone family. This compound should offer good service -40°F to 400°F.

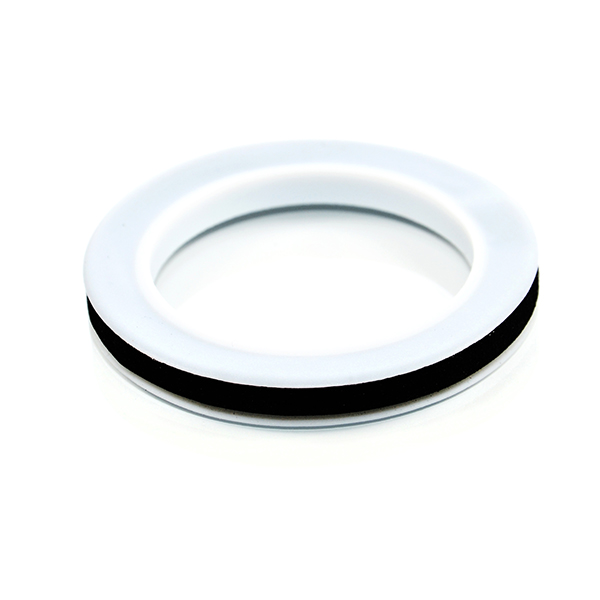

PTFE:

( The standard PTFE gasket is an envelope type design having a Nitrile Core. PTFE is recommended for highly oxidizing fluids, esters, ketones, and other liquids not generally handled by natural and synthetic rubbers *PTFE encapsulated with silicon filler -40°F to 500°F.
